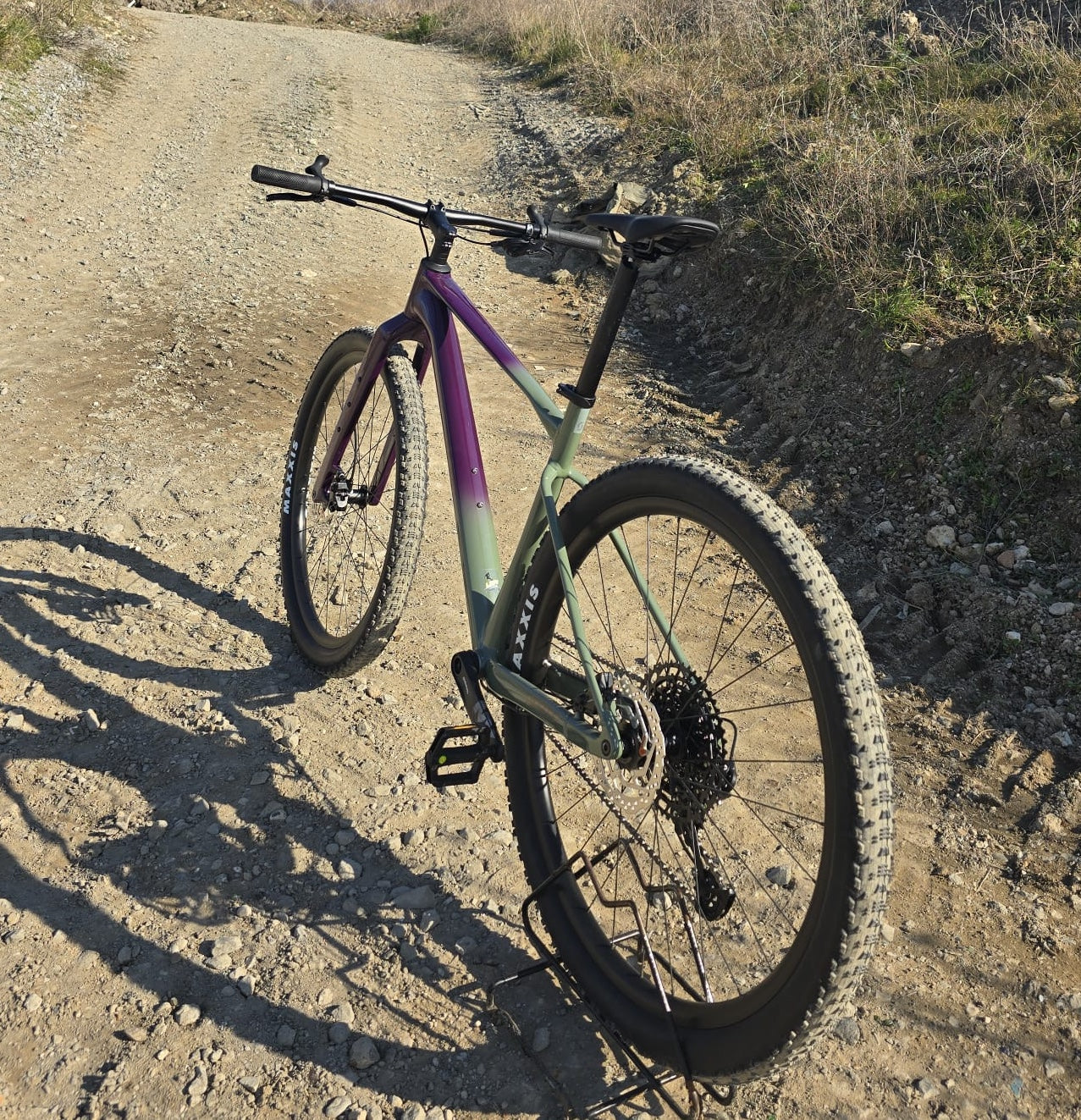

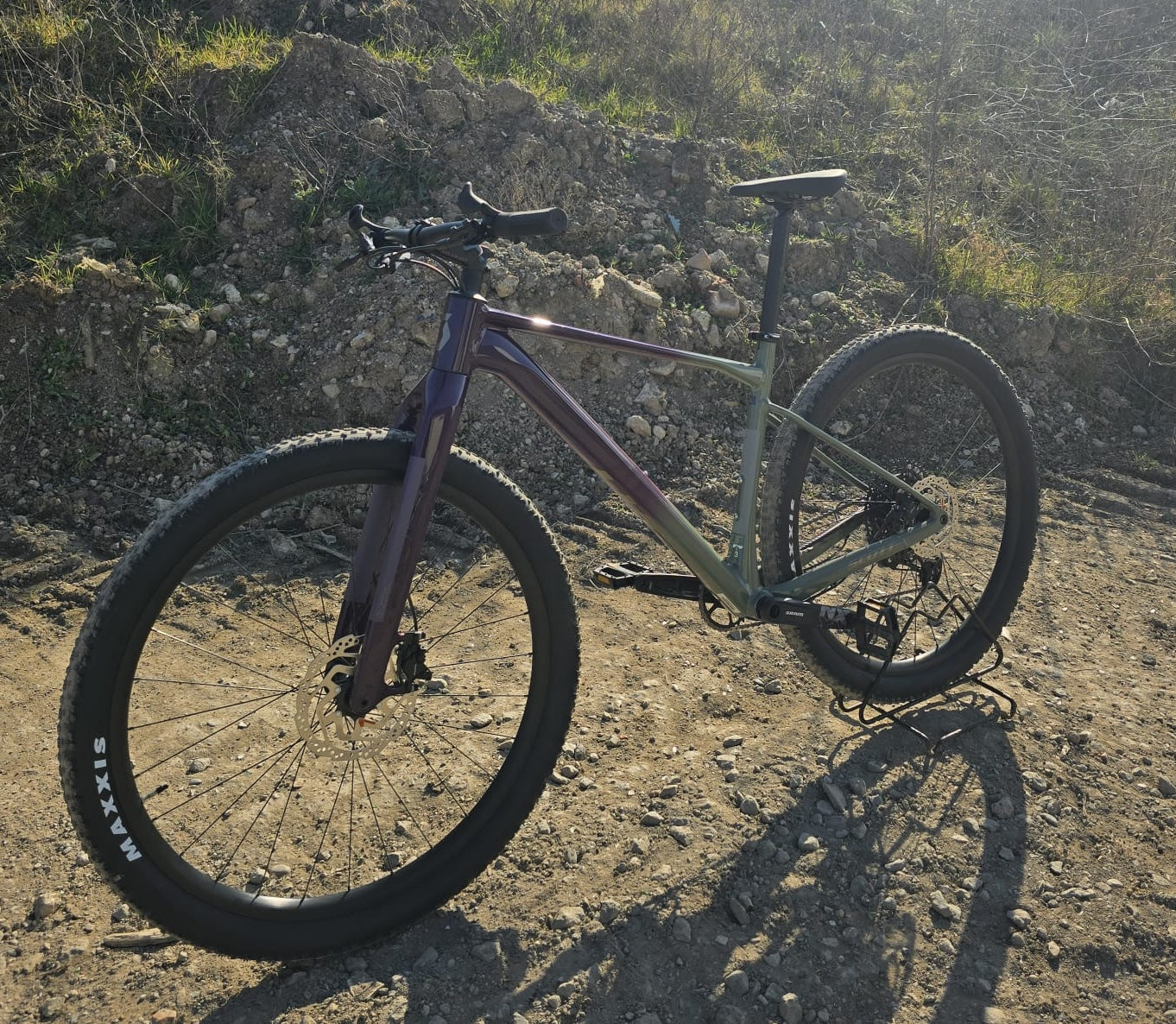

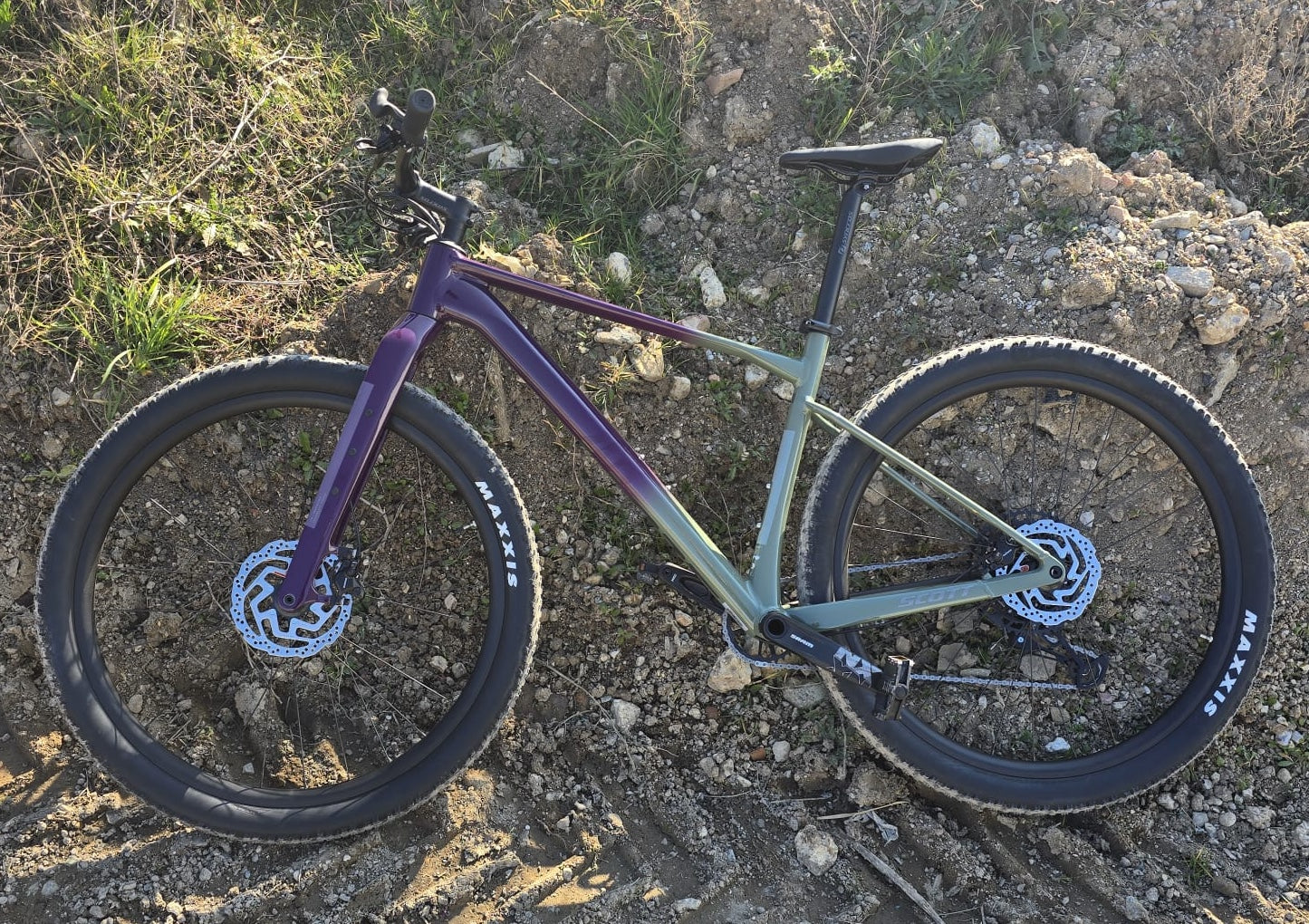

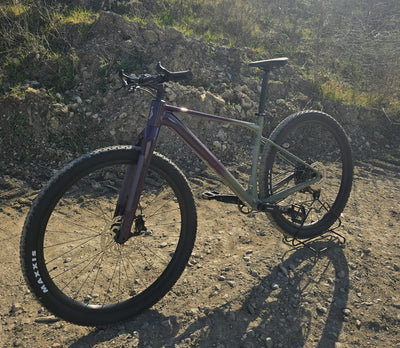

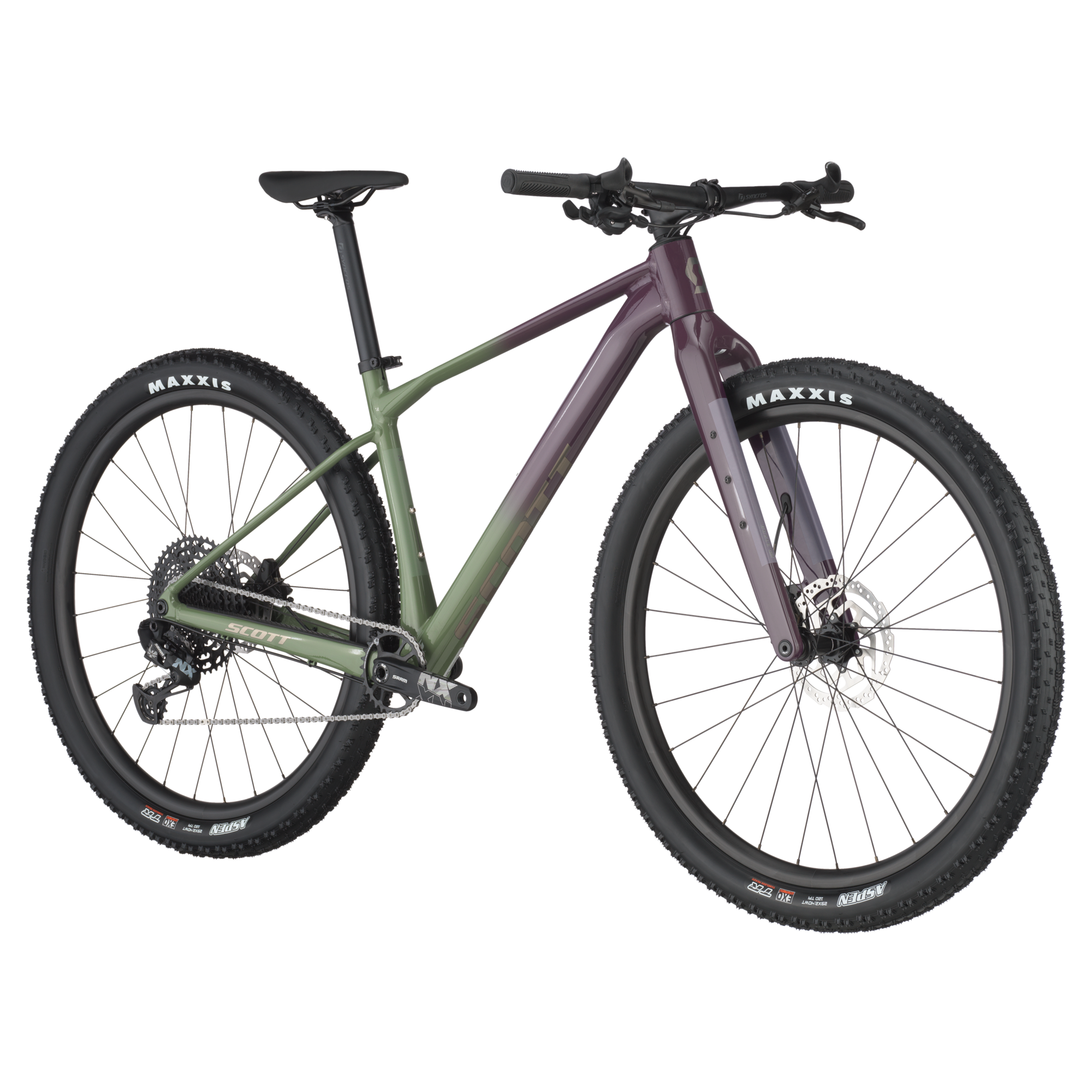

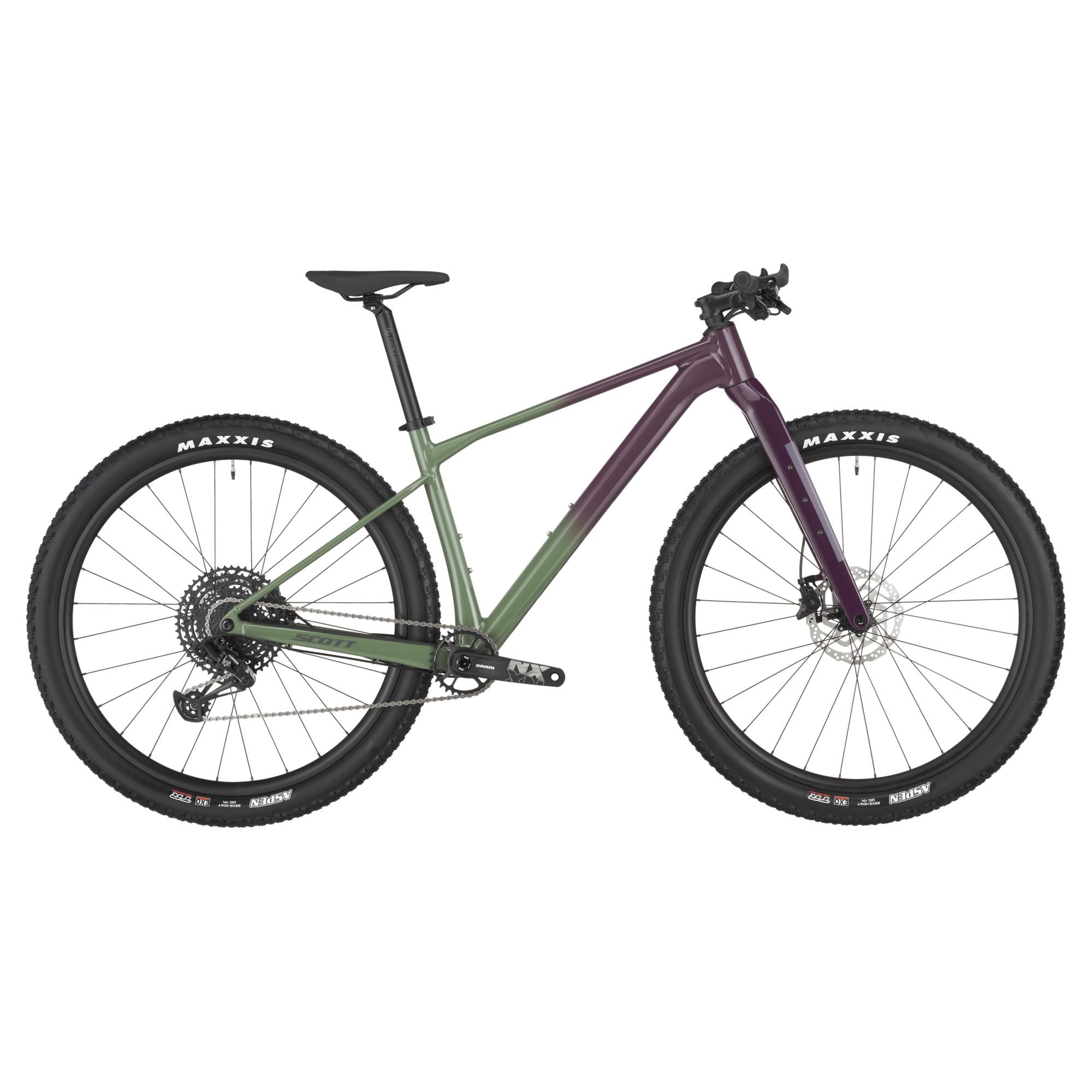

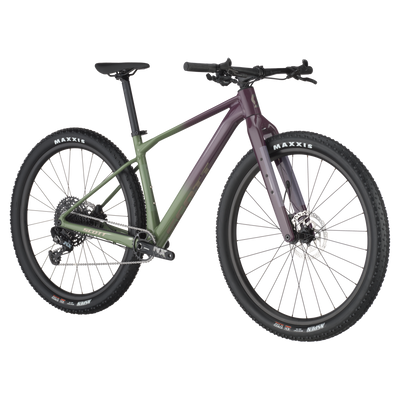

Scott Scale Gravel 20 Bike Olivine Green Blackberry 2025
Free shipping
2-year warranty
30-day returns
The all-new Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Please note that bike specifications are subject to change without prior notice
Frame
Scale Alloy 6061 Custom Butted Tubing
Syncros Cable Integration System / Tapered Headtube
BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork
Scale Rigid HMF
Postmount Disc Standard
Tapered Carbon steerer
Rear Derailleur
SRAM NX Eagle 12 Speed
Shifters
SRAM NX Eagle Trigger
Crankset
SRAM NX Eagle DUB
55mm CL / 34T
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN NX Eagle
Cassette
SRAM SX-PG1230 / 11-50
Brakes
Shimano MT401 Disc Brake
Rotor
Shimano SM-RT10 CL / 180/F and 160/R
Handlebar
Syncros Alloy 6061
T shape Flat / 9° / 740mm
Syncros Performance XC lock-on grips
H'stem
Syncros DC 3.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost
Syncros / 31.6x400mm
Seat
Syncros Belcarra Regular 2.5
Headset
Syncros - Acros OE Cable Routing HS System
OD 50/62mm / ID 42/56mm
Hub (Front)
Formula CL-811 / 15x110mm
Hub (Rear)
Formula CL-3248 / 12x148mm
Spokes
Stainless Black 15G / 1.8mm
Rims
Syncros X-28 / 28H / Tubeless ready
Front Tire
Maxxis Aspen / 29x2.4" / 120TPI Foldable Bead
Tubeless Ready / EXO
Rear Tire
Maxxis Aspen / 29x2.4" / 120TPI Foldable Bead
Tubeless Ready / EXO
Accessories
Spirgrips+ Inner Bar ends
Approx weight in KG
11.3 (with tubes)
Max. System Weight
120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
