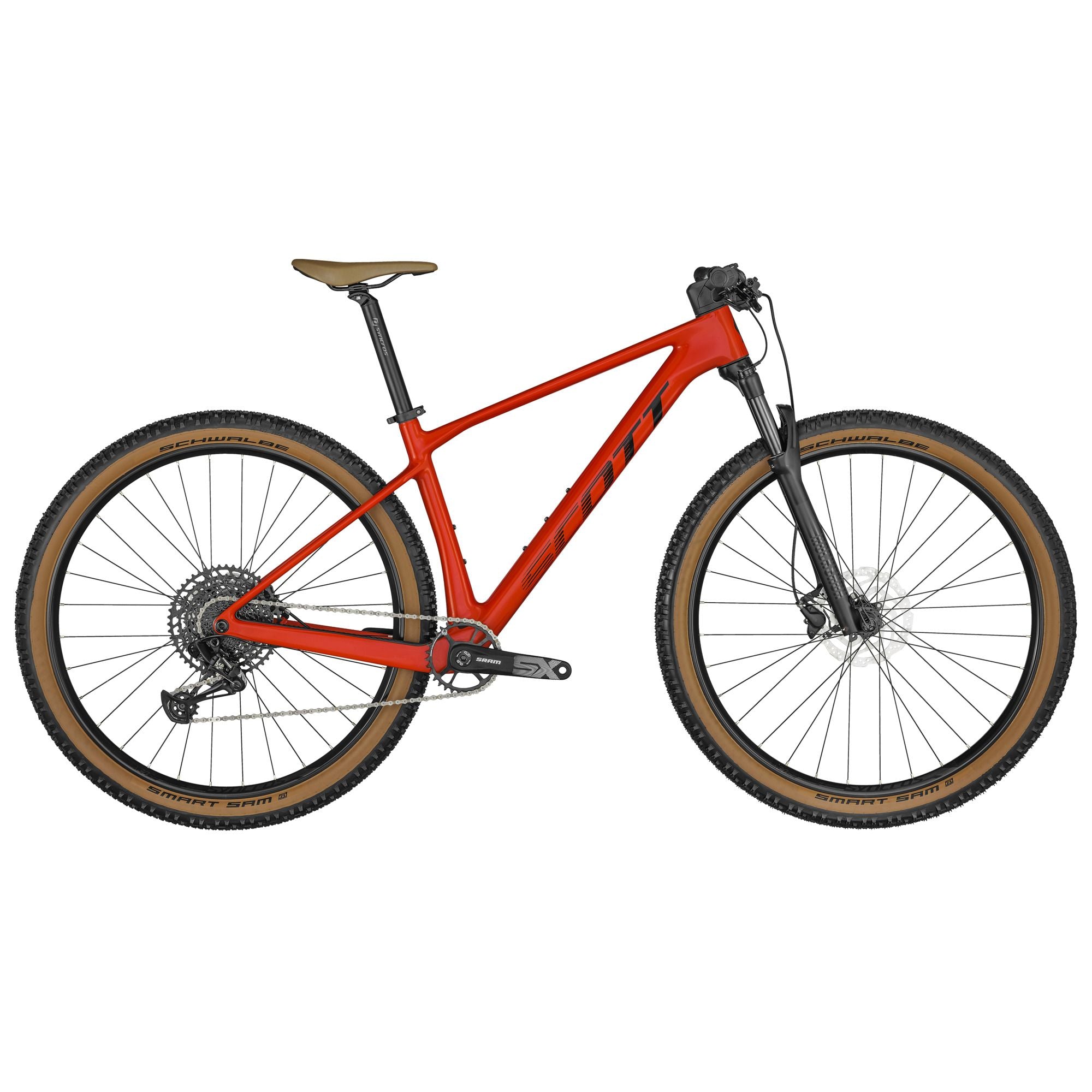

Scott Scale 940 Red 2024 Mountain Bike

Balancing the Scale’s DNA , we’ve created a whole new breed in the world of hardtail mountain bikes. A racing inspired geometry, coupled with a straightforward and sharp design provides the all-new Scale 900 line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything, are you?

Frame
Scale Carbon HMF
Adjustable head angle / Syncros Cable Integration System
Advanced Shock & Standing Damping System
BB92 / UDH Interface / 12x148mm with 55mm Chainline

Fork
RockShox Judy Silver TK Solo Air
15x110mm QR axle / 42mm offset / Tapered Steerer
Reb. Adj. / Lockout / 100mm travel

Remote System
SCOTT RideLoc 2 Remote

Rear Derailleur
SRAM NX Eagle 12 Speed

Shifters
SRAM SX Eagle Trigger

Crankset
SRAM SX Eagle DUB
55mm CL / 32T

BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm

Chain
SRAM CN SX Eagle

Cassette
SRAM SX-PG1210 / 11-50 T

Brakes
Shimano MT200 Disc Brake

Rotor
Shimano SM-RT10 CL / 180/F and 160/R

Handlebar
Syncros Alloy 6061
T shape Flat / 9° / 740mm
Syncros Performance XC lock-on grips

H'stem
Syncros Alloy 6061
oversized 31.8mm / 1 1/8" / 6° angle

Seatpost
Syncros / 31.6x400mm

Seat
Syncros Belcarra Regular 2.5

Headset
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB

Hub (Front)
Formula CL-811 / 15x110mm

Hub (Rear)
Formula CL-3248 / 12x148mm

Spokes
Stainless Black 15G / 1.8mm

Rims
Syncros X-30SE / 32H / 30mm
Tubeless ready

Front Tire
Schwalbe Smart Sam 29x2.35" / Active line

Rear Tire
Schwalbe Smart Sam 29x2.35" / Active line

Approx weights in KG
12.7 (with tubes)

Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
